Intro
Gennaker

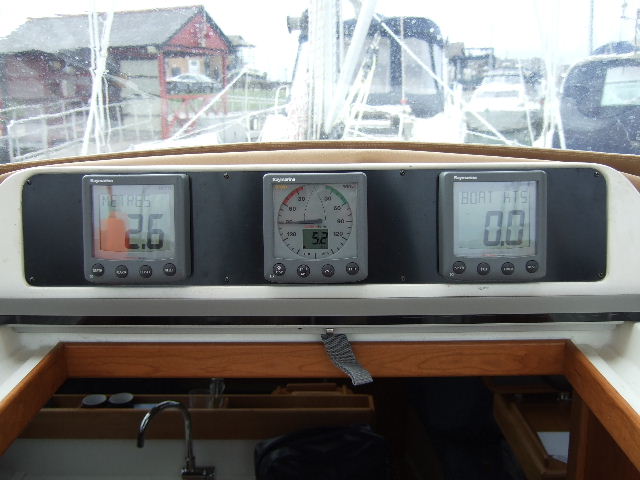

Depth/Wind/Speed above hatch

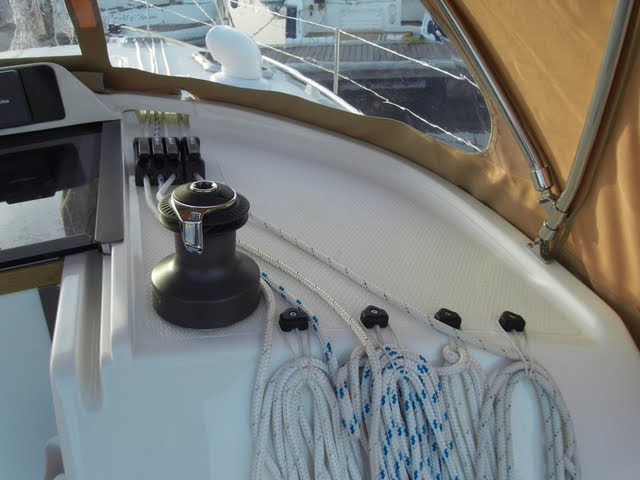

Port clutches: Reef3/Reef2/Reef3/Vang

Single line reefing only for Reefs 1 and 2

Washboard key ring has light attached

To lock smoothly sometimes needs a little pressure on middle of washboard top
(it tends to bow slightly)

Ropes tidied on loops

Stbd clutches: Outhaul/Reef1/Topping/Main

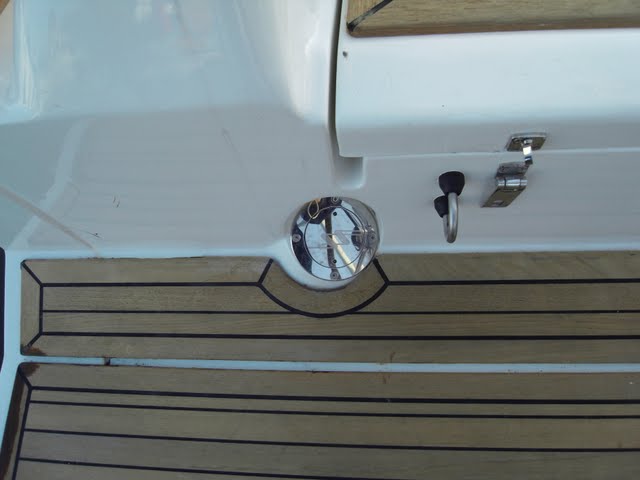

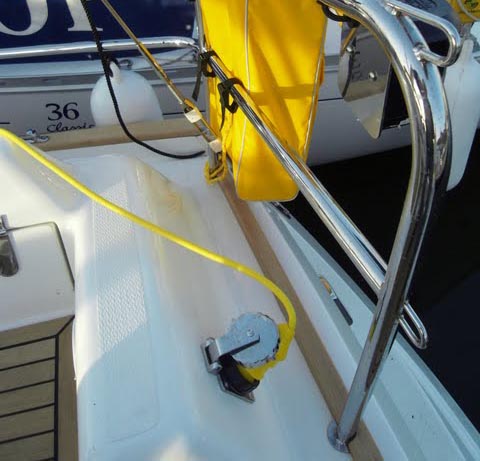

Each rudder has an emergency steering point - chrome disc covered. The main sheet may be parked as shown on side deck - should be tightened to stop pulleys damaging gelcoat and sheet end secured away from feet- it can be easily released in postion shown in picture.

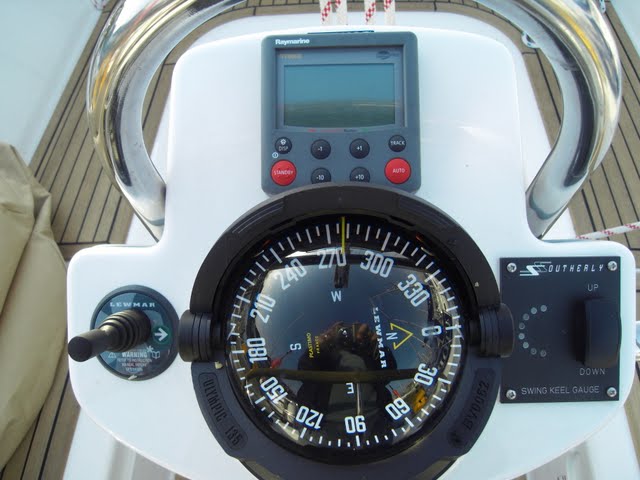

The Binnacle houses autohelm and compass plus:
1) Bowthruster - note there is a red ON button to rear of control which auto-switches off after about 10 mins.
2) Keel Control - one red light at bottom for DOWN, two reds for unlocked, then greens until six greens show UP
If the lights not showing, check Keel Indicator switch on electrical panel

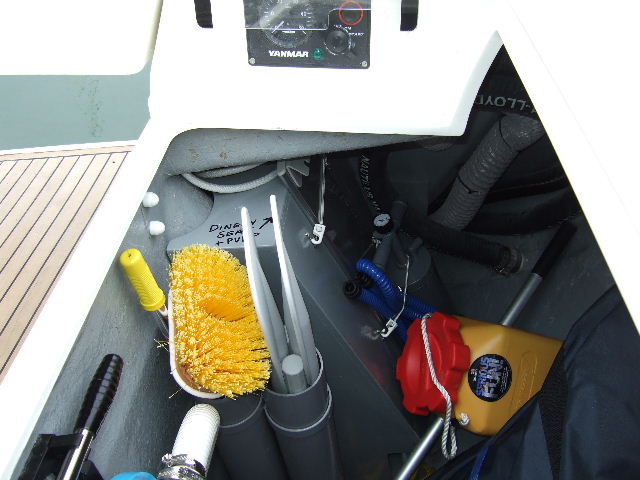

The port locker holds dinghy and associated equipment plus the manual bilge pump, handle and kedge anchor shown in middle picture.
The emergency tiller handle has unlocking tool for chrome disc cover attached.
Dinghy tether lock has key, with others, on red fobs.

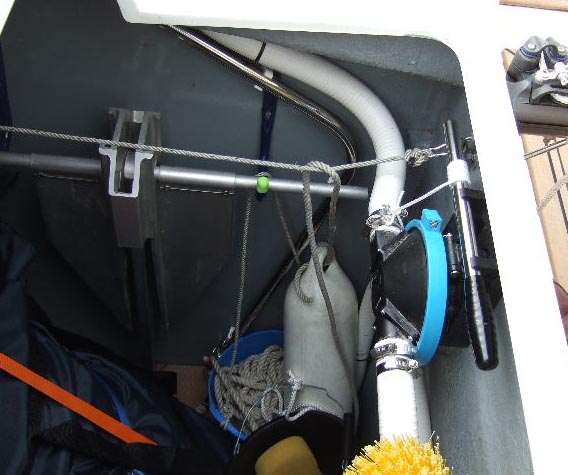

At upper rear of locker - 2 white knobs to turn off stern shower supply.

.

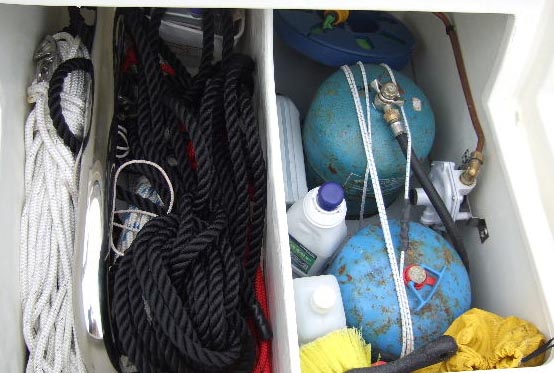

The stbd locker holds warps, snubber, lubes and tubes; plus gas - it turns on with the brass knob on the upper bottle

The stern houses a hot and cold shower with a raise and turn tap (as Jocalia). Ensure hose stows neatly and unimpeded in port locker after use - you can just see it in left picture of locker above yellow brush.

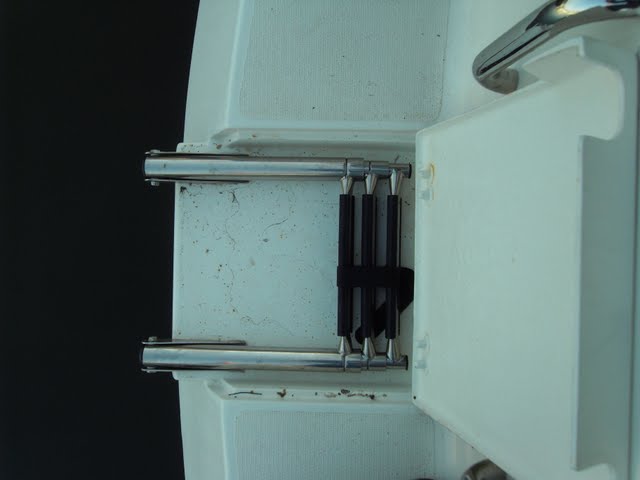

The boarding ladder simply folds away, Shore power connection is on stbd side.

See Intro page for exhaust and vent positions on stern.
