Rear Cabin
|
||

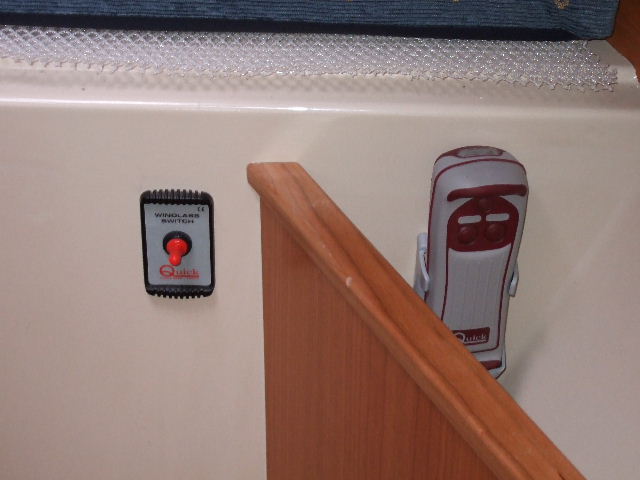

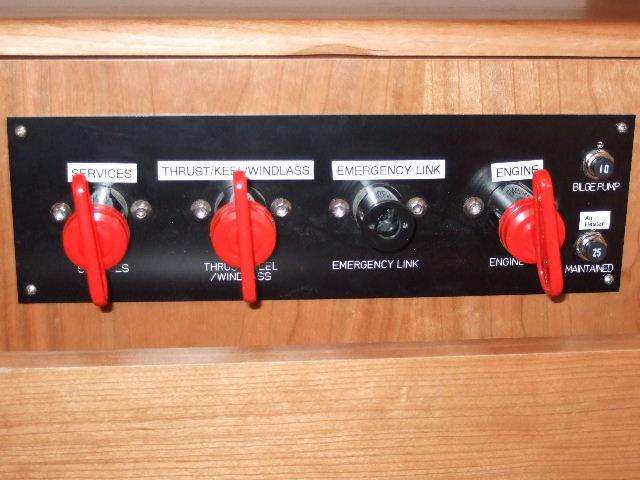

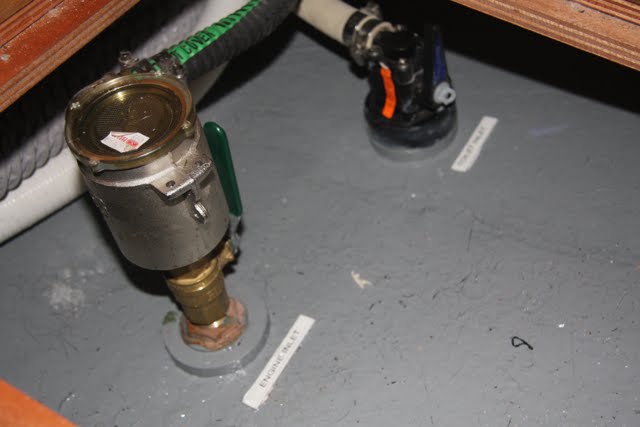

| On the port side, at the bottom of the wardrobe is the battery panel - domestic, engine and the emergency link to connect them (use thrust key) . Also bow thruster/keel/windlass switch and 2 breakers (bilge pump and heater) | Port side floor hatch, in front of bed, reveals sea water inlets for engine and toilet. The engine sea water filter was blocked with seaweed within weeks of ownership - check regularly. |
|
|
||

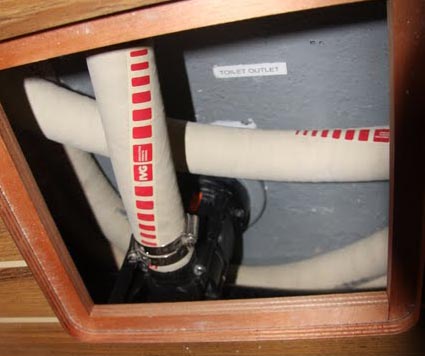

| Holding tank maintenance hatch. Pumping out is not affected by position of toilet waste selector. Capacity only 78ltr/17gal. Flush with fresh water after use. |

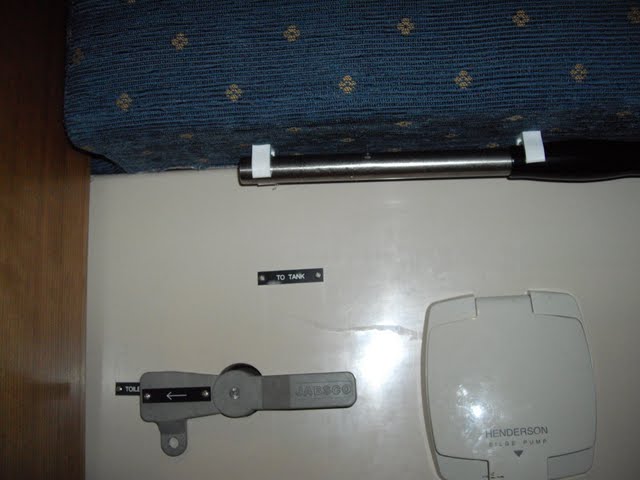

Fwd Stbd of bed below mattress is the selector for toilet waste - holding tank or sea. To empty tank use handle shown and manually pump out - the deck fitting is for marina suction pumps. |
|

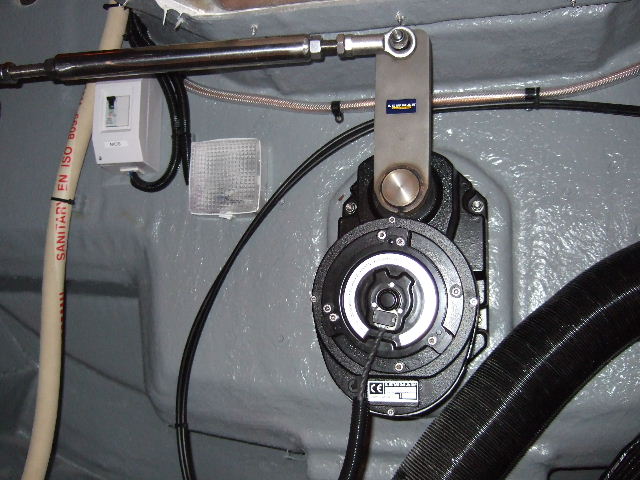

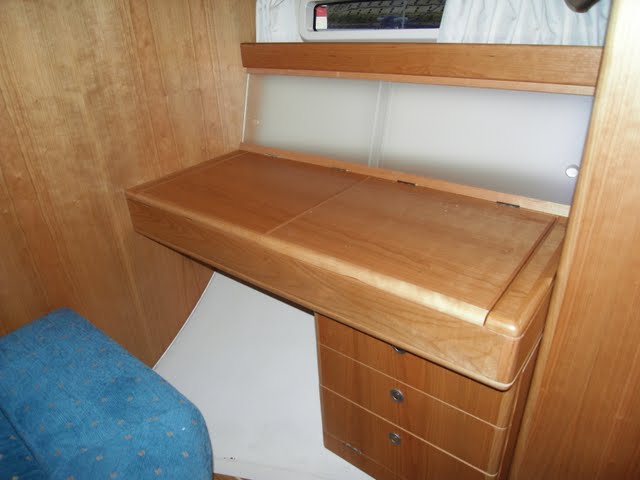

Behind your pillow is access to the steering gear and on port a dressing table   |
||
   |
||

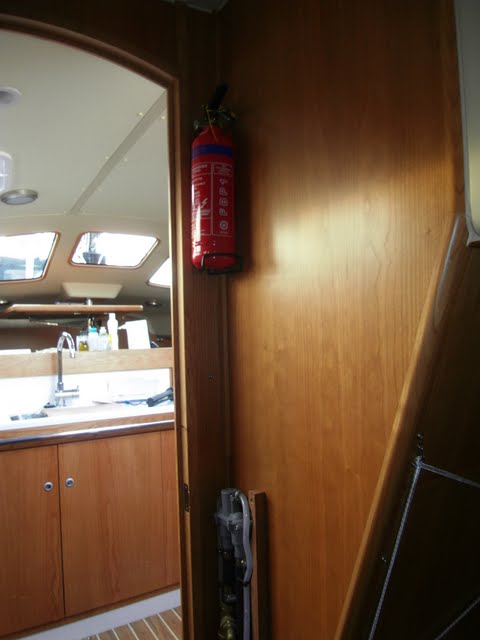

| 2 fire extinguishers & fire blanket inside the door. The dining table infill is in stbd wardrobe and the saloon mattress infill is above the engine access box. | ||
| Fwd Cabin
|
|
 |

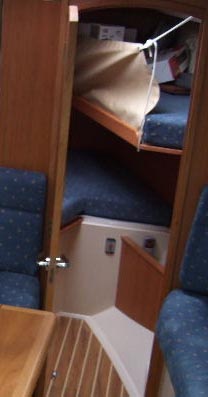

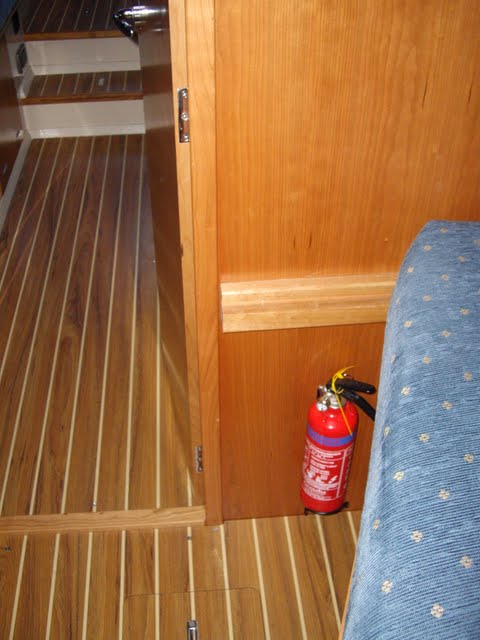

Fwd Fire extinguisher at floor level Upper bunk found comfortable, lower coolest - sides closer to water than all others on boat |
||
